PF80381B1-Q031-S9H

Rated Voltage:12 VDC
Rated Current(AVG.):2.0 / MAX.2.3 A
Rated Power(AVG.):24.00 / MAX. 27.6 W
Rated Speed:11200RPM ± 10%
Acoustic Noise(AVG.):NOMINAL 64.8 / MAX. 73.7 dB(A)
AirFlow at zero static pressure:NOMINAL 113.9/MIN.100.0 CFM

PF80381B2-Q008-S99

Rated Voltage:12 VDC
Rated Current:650 / MAX. 715 mA
Rated Power:7.80 / MAX. 8.58 WATTS
Rated Speed:7500RPM ± 10%
Acoustic Noise: 56.8 / MAX. 58.8 dB(A)
Air Flow: 75.2 / MIN. 67.3 CFM

PF80382B2-Q003-F99

Rated Voltage:24 VDC
Operating Current:190 / MAX. 219 mA
Operating Power Consumption:4.56 / MAX. 5.26 WATTS
Rated Speed:6000RPM ± 10%
Acoustic Noise: Nominal 50.9 / MAX. 55.5 dB(A)
Air Flow:Nominal 58.6 / MIN. 51.1 CFM

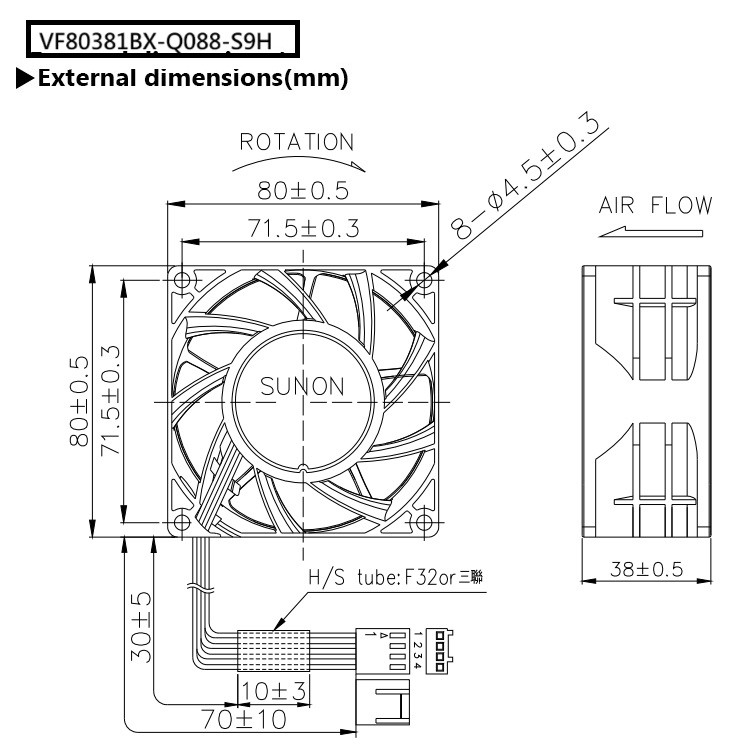

VF80381BX-Q088-S9H

Rated Voltage:12 VDC
Rated Current(AVG.):2.500 / MAX. 2.875 A
Rated Power(AVG.):30.0 / MAX. 34.5 W
Rated Speed:14400RPM ± 10%
Acoustic Noise(AVG.):Nominal 65.6 / MAX. 69.1 dB(A)
Airflow at Zero Airflow:Nominal 112.6 / MIN. 99.6 CFM
